Wechselrichter from Huawei SUN2000-17KTL-M2 (High Current Version) with 25.5KW DC and 2 MPPT


by Huawei

Wholesale prices only for
registered businesses

More information about our transaction process.
  • Green checkmark On stock delivery
  • Green checkmark Customer protection available as of 5.000 EUR Info icon
  • Green checkmark Premium supplier for reliable transactions Info icon
SUN2000-17KTL-M2 (High Current Version)
Power 25,5 KW
Power max. 25,5 KW
Current 54,0 A
Current Max. 54,0 A
Voltage 600,0 V
Voltage Max. 1.080,0 V
String Inputs 4
Power 17,0 KW
Power max. 18,7 KW
Current 28,5 A
Current Max. 28,5 A
Efficiency EU 98.3 %
length 262 mm
width 525 mm
Height 470 mm
weight 25 kg
Manufacturer warranty
Product warranty 10 years


Huawei is regarded as one of the most innovative PV companies on the market.

According to its motto, the company is leading energy digitalization for a smart and sustainable world.

Huawei’s PV business has evolved from digital PV to internet-powered PV, and now to AI-powered PV.
The company’s technology is highly advanced and is bolstered by increasingly leveraging its IT and telecoms expertise to deliver smart PV solutions.

The company’s brand is recognized globally for quality while offering an excellent price-performance ratio.

They deliver solutions to scale across the various market segments, from residential solar to C&I and utility-scale PV – and for each one, the company offers a competitive Levelized Cost of Energy (LCOE) to its customers.
OFF 70552
11 pcs.
On stock
CZ Czechia
Shipping costs
On request
Item condition
A-New goods and original packing
Payment terms
Advance payment
Customer Protection
Full star Full star Full star Full star Full star
Successful Transactions
Member since
8 years
Last time online
about 1 hour
Get free access SIGN UP

Product description

Smart String Inverter with 17 kW nominal output power. 10 years of warranty.

Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
Rated AC grid frequency: 50 Hz / 60 Hz
Adjustable power factor: 0.8 leading ... 0.8 lagging
Max. total harmonic distortion: ≤ 3 %
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0~100 %
Operating altitude: 0 ~ 4,000 m (Derating above 2000 m)
Cooling: Natural convection
Display: LED Indicators; Integrated WLAN + FusionSolar App
Communication: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Degree of protection: IP65
Nighttime Power Consumption: < 5.5 W
Topology: Transformerless

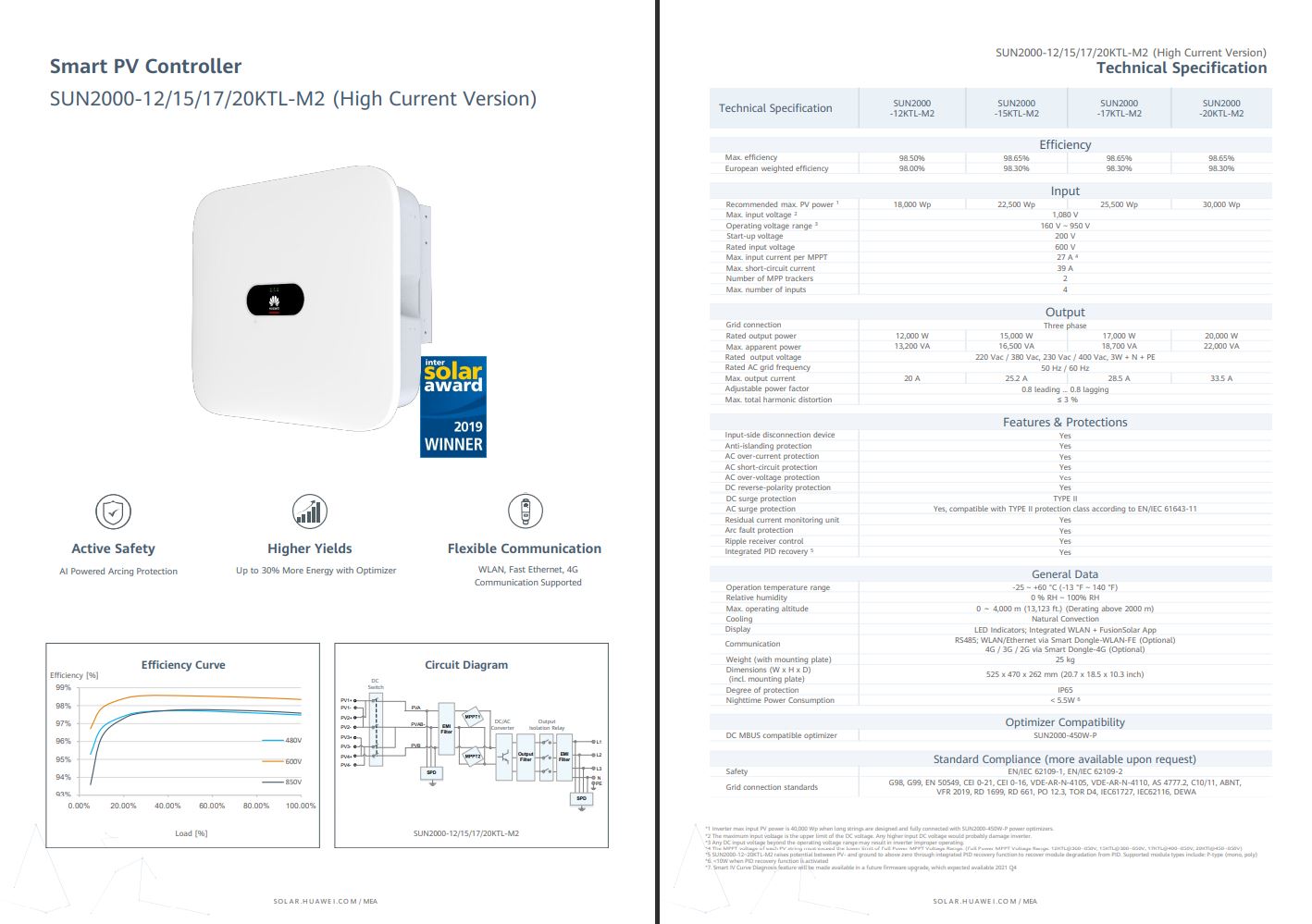

datasheet.jpg Data Sheet English Download icon
warranty-german.pdf Guarantee German Download icon
manual-quick-guide.pdf Manual English Download icon
manual-german.pdf Manual German Download icon
certificate.PDF Other English Download icon
