Performance data
DC
| Power | 18,0 KW |
| Power max. | 18,0 KW |
| Current | 54,0 A |
| Current Max. | 54,0 A |
| Voltage | 600,0 V |
| Voltage Max. | 1.080,0 V |
| MPPT | 2 |
| String Inputs | 4 |
AC
| Power | 12,0 KW |
| Power max. | 13,2 KW |
| Current | 20,0 A |
| Current Max. | 20,0 A |
Dimensions
| length | 262 mm |
| width | 525 mm |
| Height | 470 mm |
| weight | 25 kg |
Manufacturer warranty
| Product warranty | 10 years |
Certificates

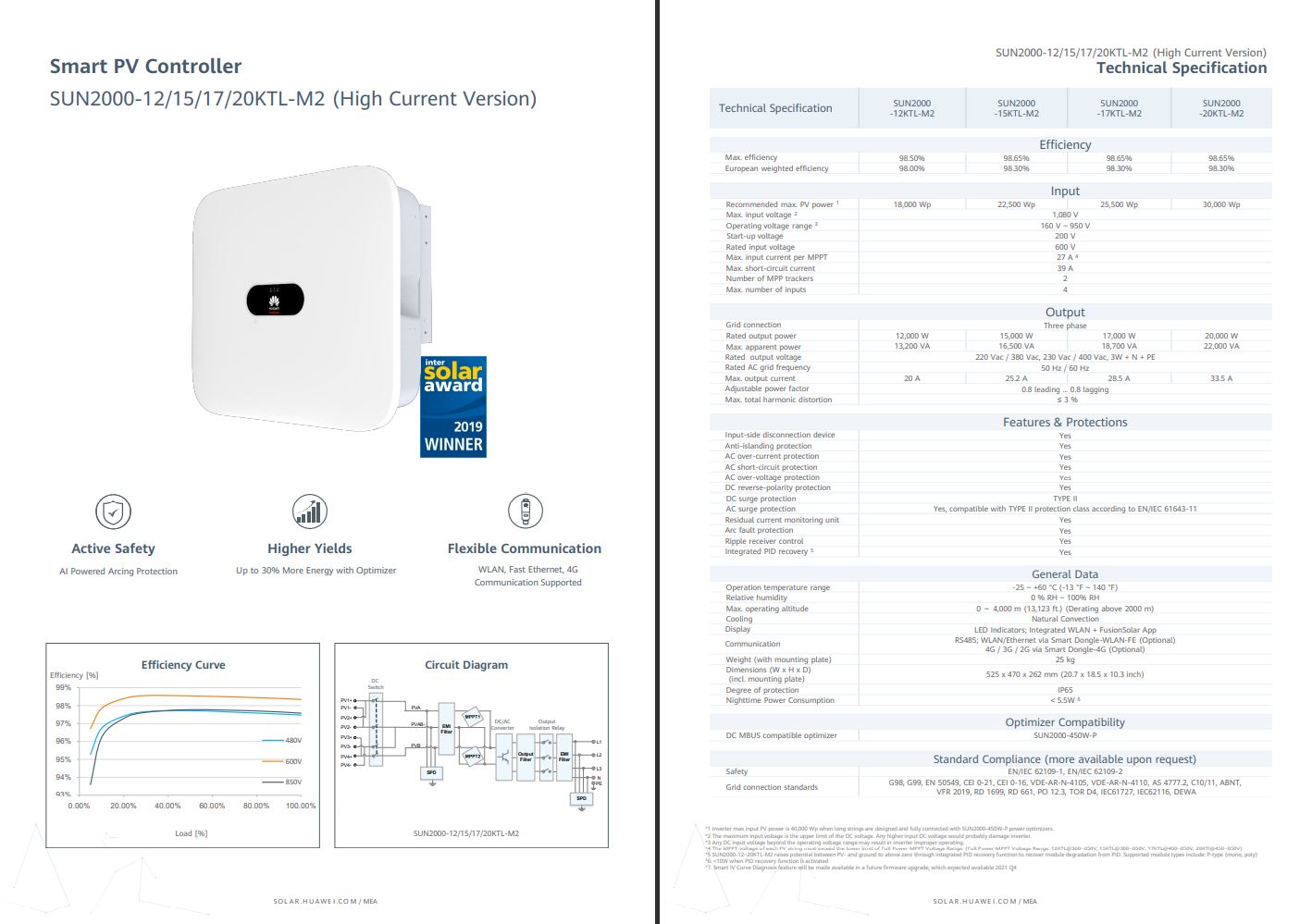

| datasheet.jpg | Data Sheet | English |  |
| warranty-german.pdf | Guarantee | German |  |
| manual-quick-guide.pdf | Manual | English | |
| manual-german.pdf | Manual | German | |
| certificate.PDF | Other | English | |
Smart String Inverter with 12 kW nominal output power. 10 years of warranty.
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
Rated AC grid frequency: 50 Hz / 60 Hz
Adjustable power factor: 0.8 leading ... 0.8 lagging
Max. total harmonic distortion: ≤ 3 %
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0～100 %
Operating altitude: 0 ～ 4,000 m (Derating above 2000 m)
Cooling: Natural convection
Display: LED Indicators; Integrated WLAN + FusionSolar App
Communication: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Degree of protection: IP65
Nighttime Power Consumption: < 5.5 W
Topology: Transformerless
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
Rated AC grid frequency: 50 Hz / 60 Hz
Adjustable power factor: 0.8 leading ... 0.8 lagging
Max. total harmonic distortion: ≤ 3 %
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0～100 %
Operating altitude: 0 ～ 4,000 m (Derating above 2000 m)
Cooling: Natural convection
Display: LED Indicators; Integrated WLAN + FusionSolar App
Communication: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Degree of protection: IP65
Nighttime Power Consumption: < 5.5 W
Topology: Transformerless
Huawei
Huawei is regarded as one of the most innovative PV companies on the market.
According to its motto, the company is leading energy digitalization for a smart and sustainable world.
Huawei’s PV business has evolved from digital PV to internet-powered PV, and now to AI-powered PV.
The company’s technology is highly advanced and is bolstered by increasingly leveraging its IT and telecoms expertise to deliver smart PV solutions.
The company’s brand is recognized globally for quality while offering an excellent price-performance ratio.
They deliver solutions to scale across the various market segments, from residential solar to C&I and utility-scale PV – and for each one, the company offers a competitive Levelized Cost of Energy (LCOE) to its customers.
